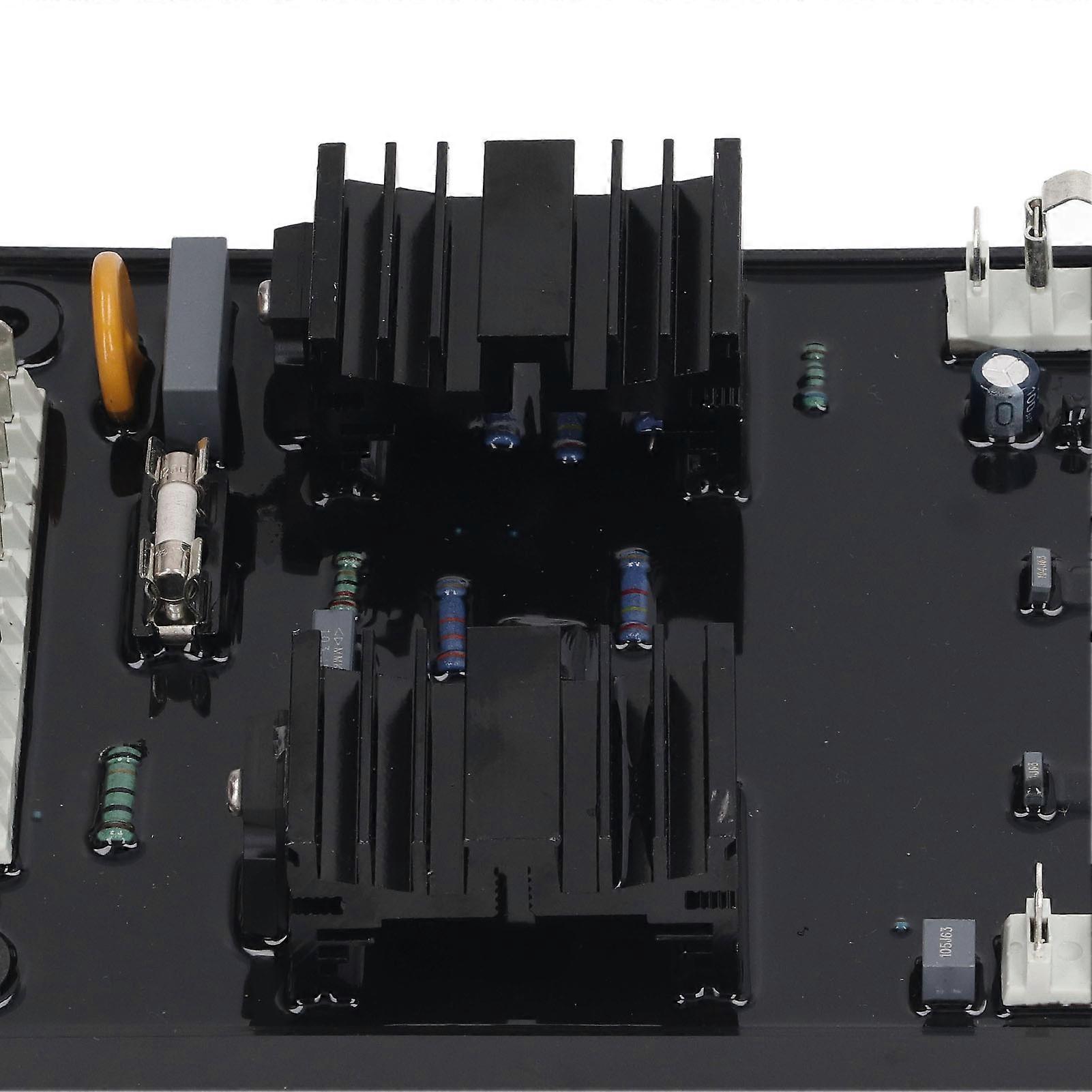

Feature 1FIELD PARAMETERS: AVR control the DC exciter field power of conventional 50 or 60 Hz brushless generators that have a maximum 63V DC exciter field to regulate the generator output voltage 2HOW IT WORKS: The regulator is provided by sensing the generator output voltage, converting into a DC signal and comparing the signal with a reference voltage signal 3STABLE OUTPUT: Error signals of regulator are developed and used to control DC chip power to maintain constant generator output 4SUPPORT GRID CONNECTION: General use grid connected generator automatic regulator plate can be used for two generators grid connected power generation 5EXCELLENT PERFORMANCE: Generator AVR is made with fine workmanship, possess compact appearance and stable performance, can make sure durability and stabilitySpecificationItem Type: Automatic Voltage RegulatorOutput Voltage(DC): Maximum continuous 6A, 100Vdc(240Vac input)MaximumOutput Current(DC): Maximum 15A, 1 minuteExcitation Winding Resistance: Minimum 6Input(AC): 180-250Vac, 50/60HzPower: Maximum 1000VA(240Vac)Signal voltage(AC):180 to 250Vac(220Vac system) single phase350 to 460vac(400Vac system), 50/60HzPower Consumption: 5AVoltage Adjustment Range: 180~250Vac; 350~460VacPressure Regulation Accuracy: 0.5%Voltage Temperature Drift: 0.2% or 10(50)Response Time: 1 CycleBuilding Voltage: Remaining excitation voltage of generator built automatically, 9Vac, 35HzPower Consumption: Maximum 40WParallel Connection: CT: Common current transformer with rated current ratio of 1Droop: 0 ~5% 0.8 power factorAutomatic regulator plate for general purpose grid connected generatorAutomatic regulator plate for general purpose 6Amp generator can be used for grid connected generation of two generators Package List1 x Automatic Voltage Regulator
