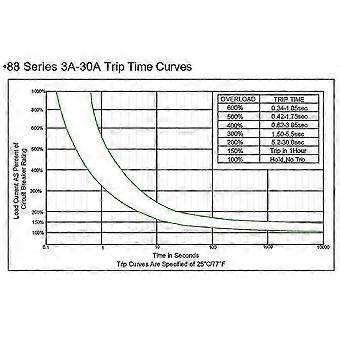

ProductTechnical dataCurrent rating range:3~30AInput voltage rating :125250VAC; 3250VDCInterrupting Capacity : 125250VAC x 1,000A(UL 1077)Typical life : 1,000 operations at 200% overloadInsulation co-ordination:Rated impulse withstand voltage 2.5kVDielectric Strength:> 1.500VACmin.Insulation Resistance:>100MOHM (DC 500V)Degree of protection:Terminal area IP00, operating area IP40MechanicalEnvironmental DataOperating Ambient Temperature: -10 to +60Mounting: Various options. See Ordering Information and drawingsTermination: 250&x27;&x27;(6.35mm)quick connects or solder terminalsCalibration(at25)99% of Rated Current: Hold ,No Trip300% of Rated Current: 1.5-5.0 sec Trip200% of Rated Current: 5-30 sec Trip150% ofRated Current: Trip Within 1 HourApprovalApproval & File No Rated current Rated voltageCUL UL E155159 3- 30A 125250VAC; 50VDCTUV SUD B15 09 58611 007 3-20A 125250VAC; 32VDCVDE 40036160 3-16A 125250VACCSA 102199 3-16A 250VACIEC 60934 3-20A 250VACTypical applicationsTarnsforms, Motors, Battery chargers, Power supplies, appliances, extra low voltage systems, machineryRelated Products88 series91 series98 series92 series94N seriesAR seriesWhen shopping, please pay attention to the size and dimensions of the product to ensure that it meets your needs. In the title and , we have provided detailed information about the product, including its features and specificationsWe want you to be completely satisfied with your purchase, so if you have any questions or concerns, please don't hesitate to contact us. We are here to help and will do our best to assist you.Thank you for choosing our product. We hope you enjoy itnn
