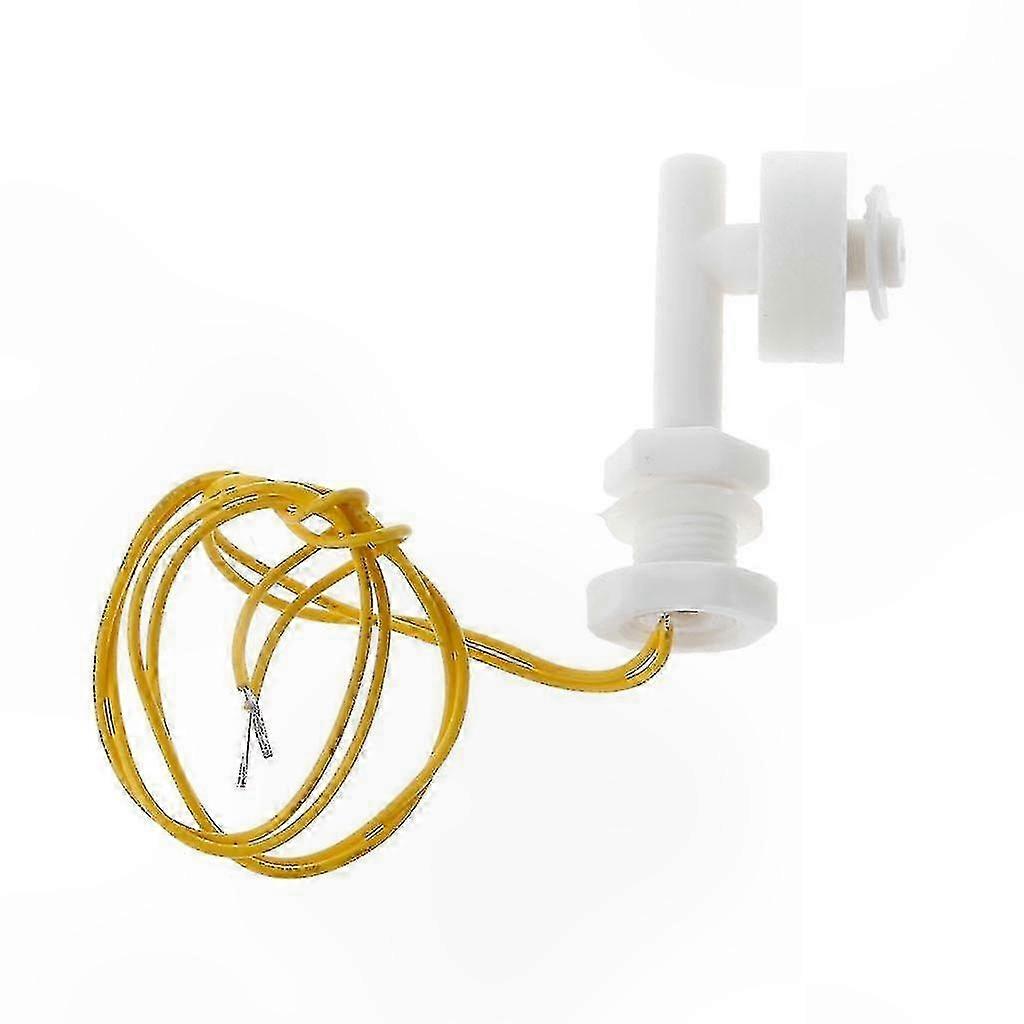

White PP Right Angle Float Switch for Liquid Level Sensing

Float level switch is a simple structure, easy to use level control device. It does not provide power and has no complicated circuit. It has a smaller volume than the general mechanical switch and offers a long working life and other advantages. With correct material selection and shape, it can be used with various liquids under different pressure and temperature conditions. It is widely used in shipbuilding, power generation equipment, petrochemical, food industry, water treatment equipment, dyeing and finishing industry, and hydraulic machinery. How it works: The float level switch consists of a magnetic reed switch and a float made of magnetic material. One or more magnetic reed switches are sealed inside a non-magnetic metal or plastic tube. The float moves along the tube as the liquid level changes. A dual loop control system fixes the float and reed switch in the appropriate positions. As the float rises or falls with the liquid level, the magnetic field activates the reed switch, causing it to open or close. When the float is near the reed switch, the switch turns on; when the float moves away, the switch turns off. This action enables level control or indication. Specification: Product Name: Water Level Sensor Cable Length: 37cm / 14.6" Float Ball Size (Approx): 10 x 24mm / 0.39" x 0.94" (D*H) Thread Diameter (Approx): 11.5mm / 0.453" Hex Nut Size (Approx): 19mm / 0.748" Bottom Clip Diameter (Approx): 20.5mm / 0.8" Total Size: 55 x 35mm / 2.16" x 1.38" (LxW) Water Level Sensor White PP Right Angle Float Switch Max Contact Rating: 10W Max Switching Voltage: 100V DC Max Switching Current: 0.5A Max Breakdown Voltage: 220V DC Max Carry Current: 1.0A Max Contact Resistance: 100mΩ Temperature Rating: -10°C to +60°C / +85°C Float Ball Material: PP Float Body Material: PP A float switch is a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other device. Color: White & Yellow Net Weight: 13g Package Content: 1 x Water Level Sensor
